How to setup the framework

Prerequisites

To run the program you need the following software installed:

  1. git

  2. Python 3.10

  3. Node.js

  4. Docker Compose (optional)

Setup

There are two possible ways to setup the framework:

  1. Manually setting up the whole framework

  2. Using Docker Compose to automatically setup the whole framework

In this tutorial we will setup the framework to train models on FreeCell.
The installment for other games will look similar but there may be slight differences so please read README files before you proceed

Setup (manual)

To manually setup the whole framework you’ll need to setup these modules:

  1. API

  2. RL

  3. Frontend

  4. Visualisation (optional)

After setting up all the modules you will be able to run the framework any time

API setup

To setup API you’ll need to perform the following steps:

  1. open terminal

  2. git clone https://github.com/ZPI-2023-IST/API

  3. cd API

  4. create venv and activate it

  5. pip install -r requirements.txt

  6. pip install git+https://github.com/ZPI-2023-IST/FreeCell.git (installing game)

  7. pip install git+https://github.com/ZPI-2023-IST/Translator.git (installing translator)

After performing all the steps run python main.py in the terminal. You should see the following screen

_images/api_setup.png

If you see an error please try again from the start. If that doesn’t solve the issue please contact us.

RL setup

To setup RL you’ll need to perform the following steps:

  1. open terminal

  2. git clone https://github.com/ZPI-2023-IST/RL

  3. cd RL

  4. create venv and activate it

  5. pip install -e .

NOTE - to run the rl module locally you’ll need to change host (TO DO AFTER PATRYK FINISHES)

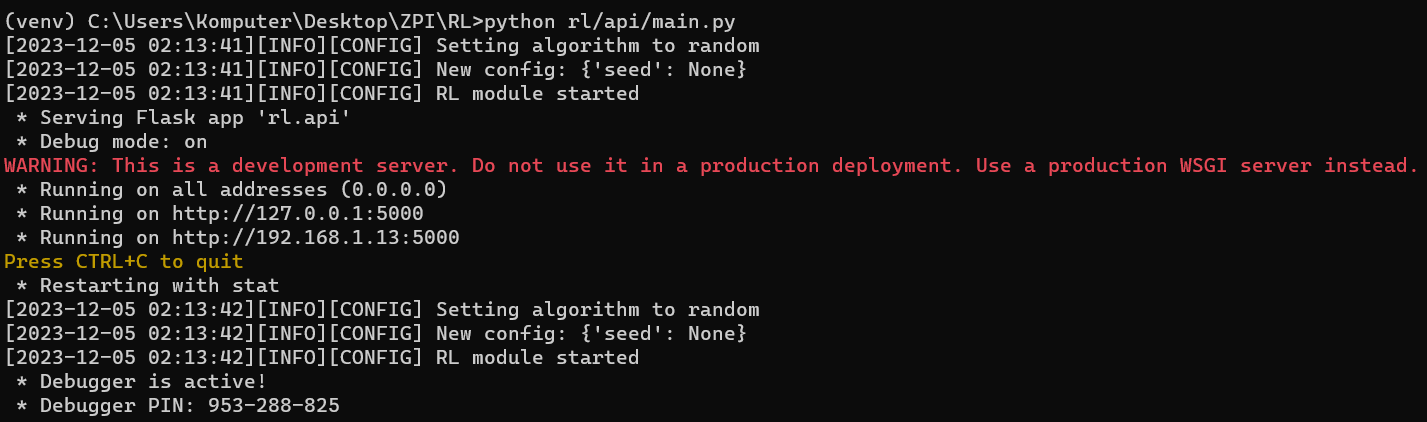

After performing all the steps run python rl/api/main.py in the terminal. You should see the following screen

_images/rl_setup.png

If you see an error please try again from the start. If that doesn’t solve the issue please contact us.

Frontend setup

To setup Frontend you’ll need to perform the following steps:

  1. open terminal

  2. git clone https://github.com/ZPI-2023-IST/Frontend

  3. cd Frontend

  4. npm install

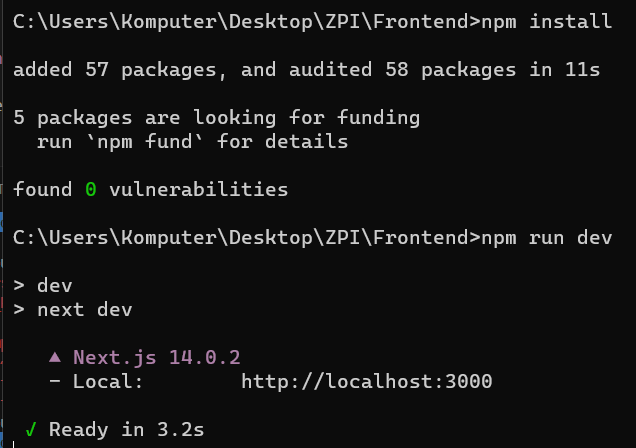

After performing all the steps run npm run dev in the terminal. You should see the following screen

_images/frontend_setup.png
If you see an error please try again from the start. If that doesn’t solve the issue please contact us.
NOTE - do not click on the link unless you have API and RL modules running

Visualisation setup

To setup Visualisation you’ll need to perform the following steps:

  1. open terminal

  2. git clone https://github.com/ZPI-2023-IST/FreeCell-GUI

  3. cd FreeCell-GUI

  4. npm install

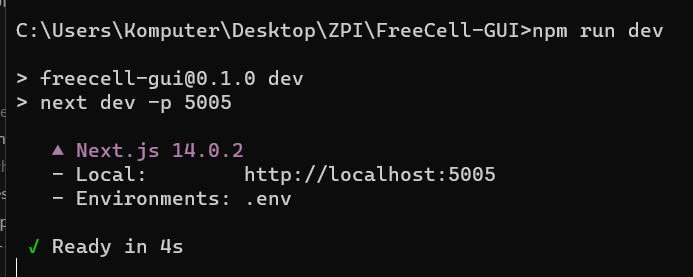

After performing all the steps run npm run dev in the terminal. You should see the following screen

_images/visualisation_setup.png
If you see an error please try again from the start. If that doesn’t solve the issue please contact us.
NOTE - the module should be accessible from Frontend. On itself it won’t run

Setup (Docker Compose)

To make setup easier you can use Docker Compose
For that to be able to run you’ll need to have every module configured to run as a Docker container
We’ve shared a script for Docker Compose setup
To setup the module in this way you need to perform the following steps:

  1. open terminal

  2. git clone https://github.com/ZPI-2023-IST/Containers

  3. cd Containers

  4. git checkout Z2-85_docker_compose

  5. docker compose up

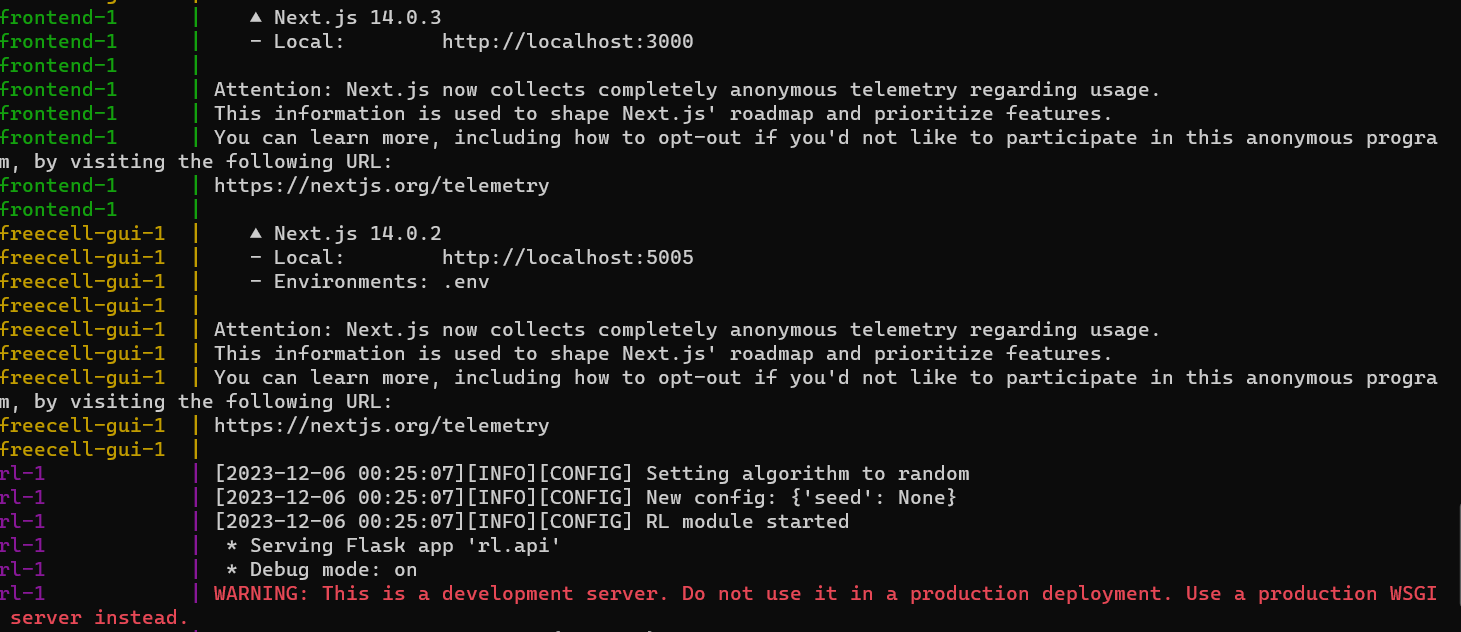

After performing all the steps you should see the following screen

_images/docker_compose_setup.png

If you see an error please try again from the start. If that doesn’t solve the issue please contact us.
